Product tour · UI from end-to-end tests

From registration to a live prediction

Multi-party path on a runnable Local Docker stack (Playwright lifecycle): onboard → catalog → contract → train → provenance → deploy/predict → Auditor (Merkle + contract). Azure narrative (Entra, Key Vault, confidential compute): slide deck and CC deep dive. Local path: host Docker training (`TRAINING_EXECUTION_MODE=local-docker`).

Azure product tour deck Azure confidential computing SPIFFE / Workload Identity Azure deck notes

What you will see

Local path (runnable screenshots) · Azure confidential computing (threat model · KMS · Secure Key Release · e2e train)

Party registration — Training Data Consumer, Training Data Provider, Tech Service Provider (signing key at register)
Catalog — dataset publish and model selection for training
Contract — create, notify, and sign by all parties
Training — start job, completion, run logs & provenance
Deploy & test — register artifact, deploy, run a prediction
Auditor — Merkle audit tree + contract review
Open-GMASE — policy gate + CompliancePulse ingest

Canonical long-form text: Lifecycle user guide · Participant onboarding & E2E lifecycle · Azure security architecture.

Local path

Tour captured from a real local run (TRAINING_EXECUTION_MODE=local-docker). TSP here is the Local clean-room provider. Screenshots from the Playwright lifecycle guide. Covers contracts, training UX, provenance, inference, and Auditor review. For Azure confidential VMs, Key Vault, and Secure Key Release, see the Azure deep dive.

1. Party registration (Local)

Each party registers as an enterprise organization, chooses a party signing key algorithm, then lands on a role-specific dashboard.

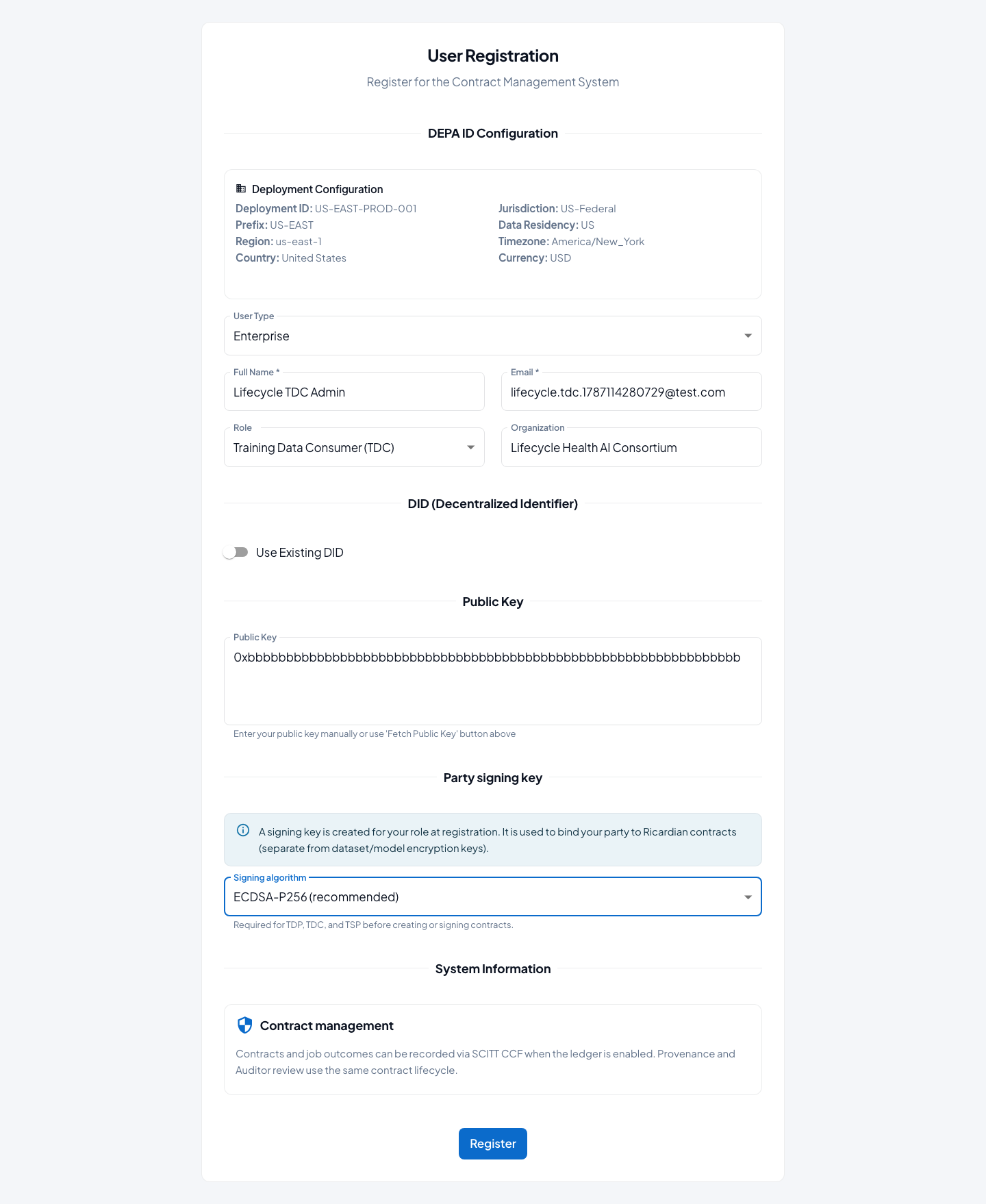

Enterprise registration for Training Data Consumer — Training Data Consumer — enterprise registration

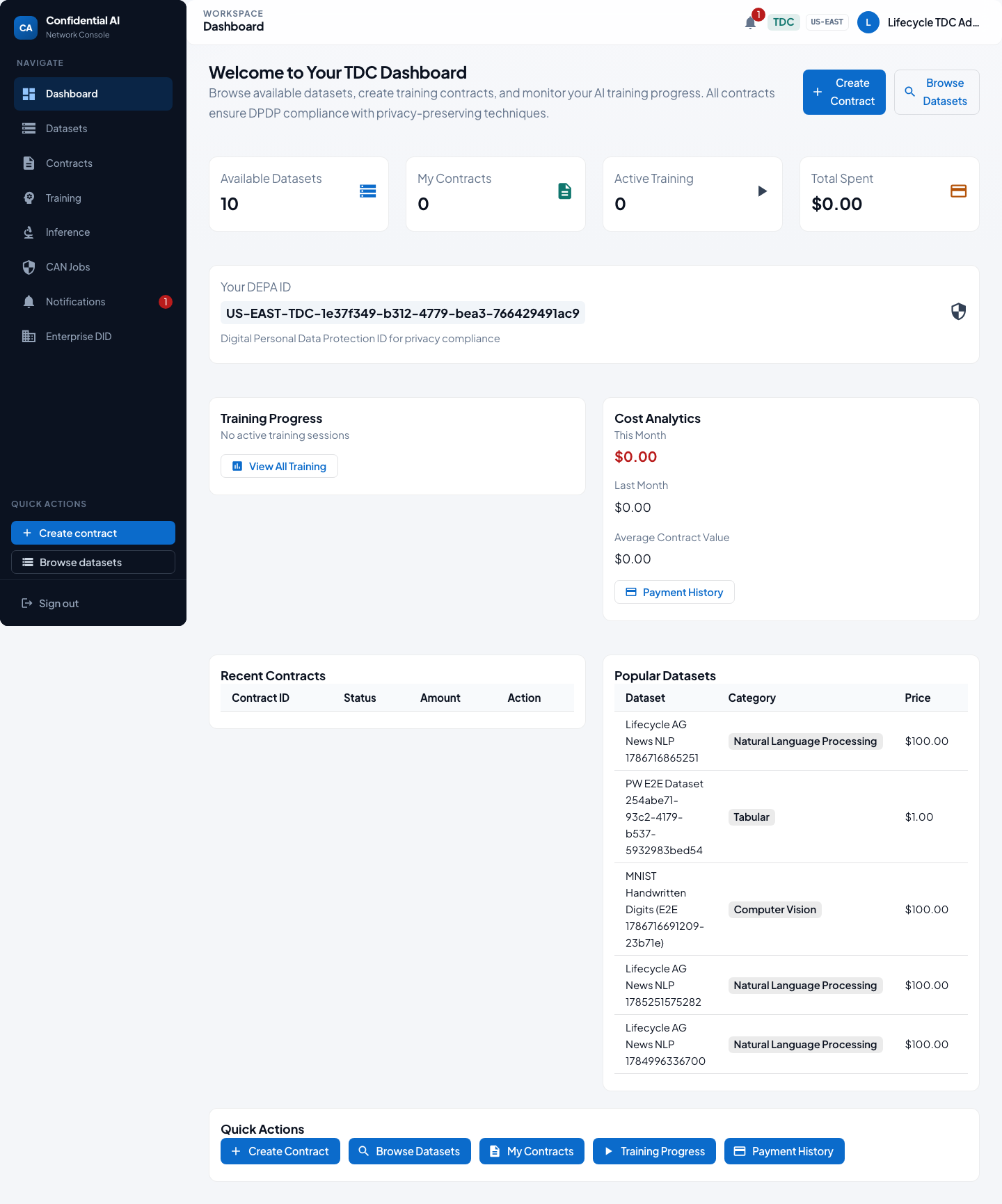

Training Data Consumer dashboard after first login — Training Data Consumer — first-login dashboard

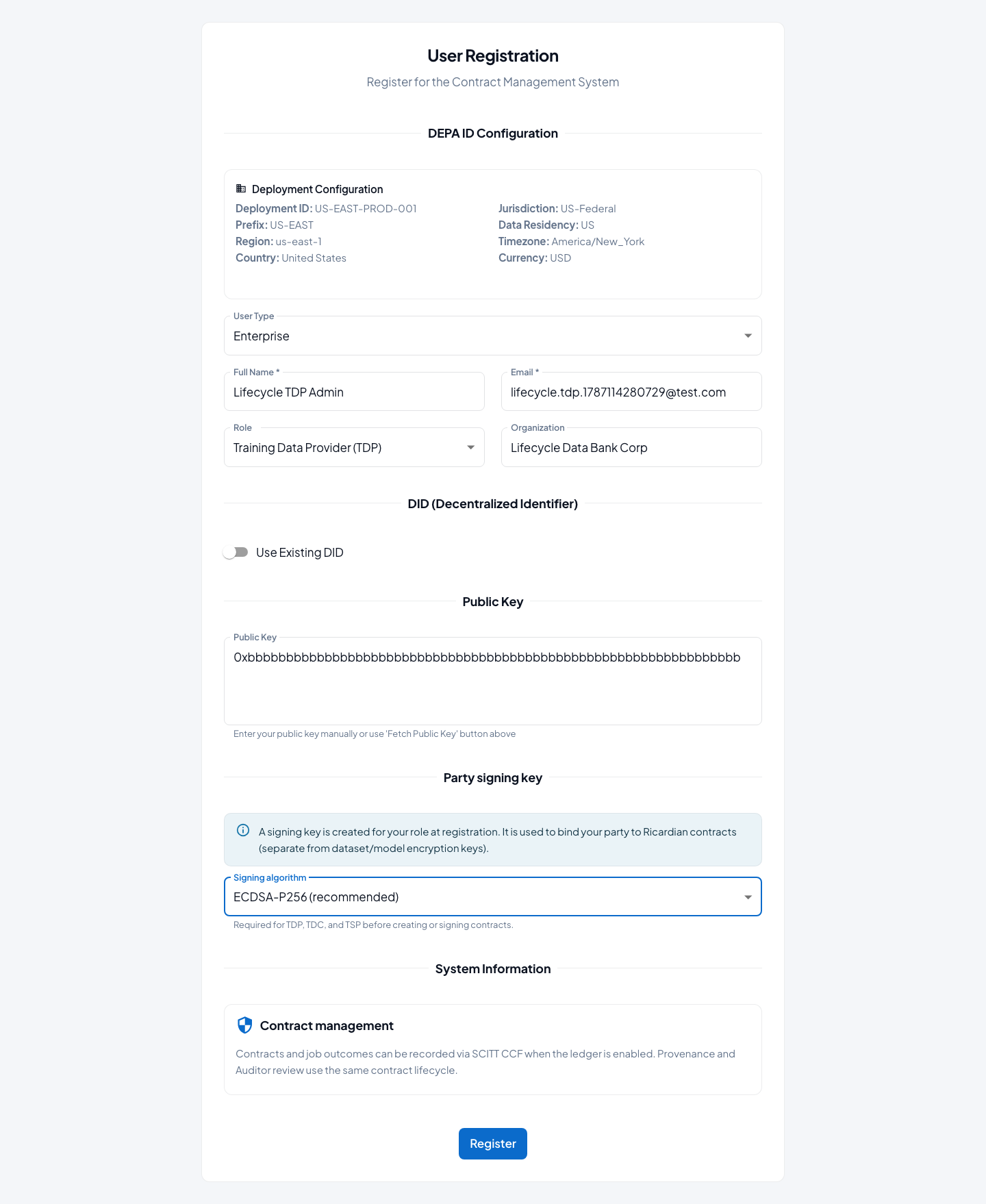

Enterprise registration for Training Data Provider — Training Data Provider — enterprise registration

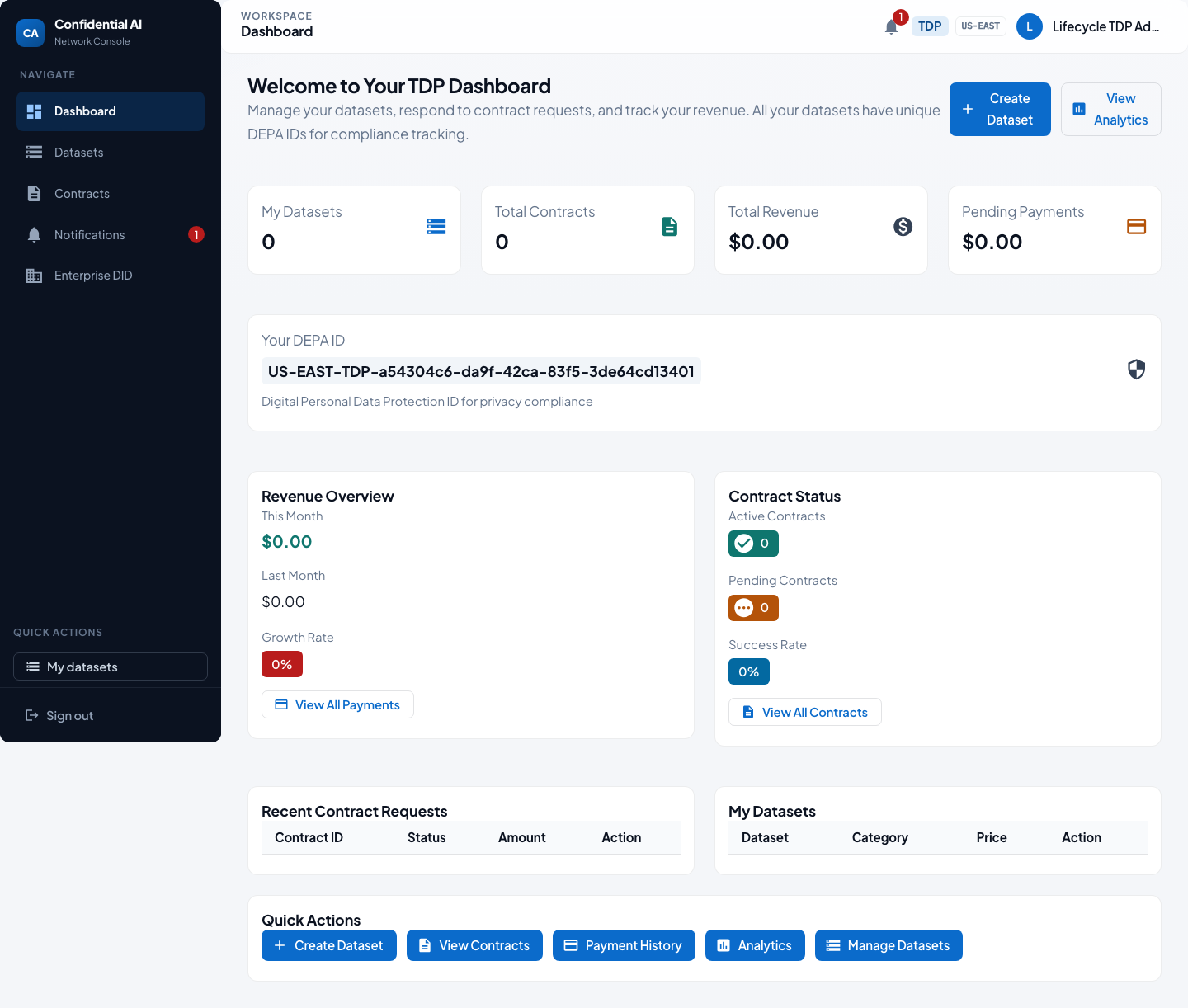

Training Data Provider dashboard — Training Data Provider — dashboard

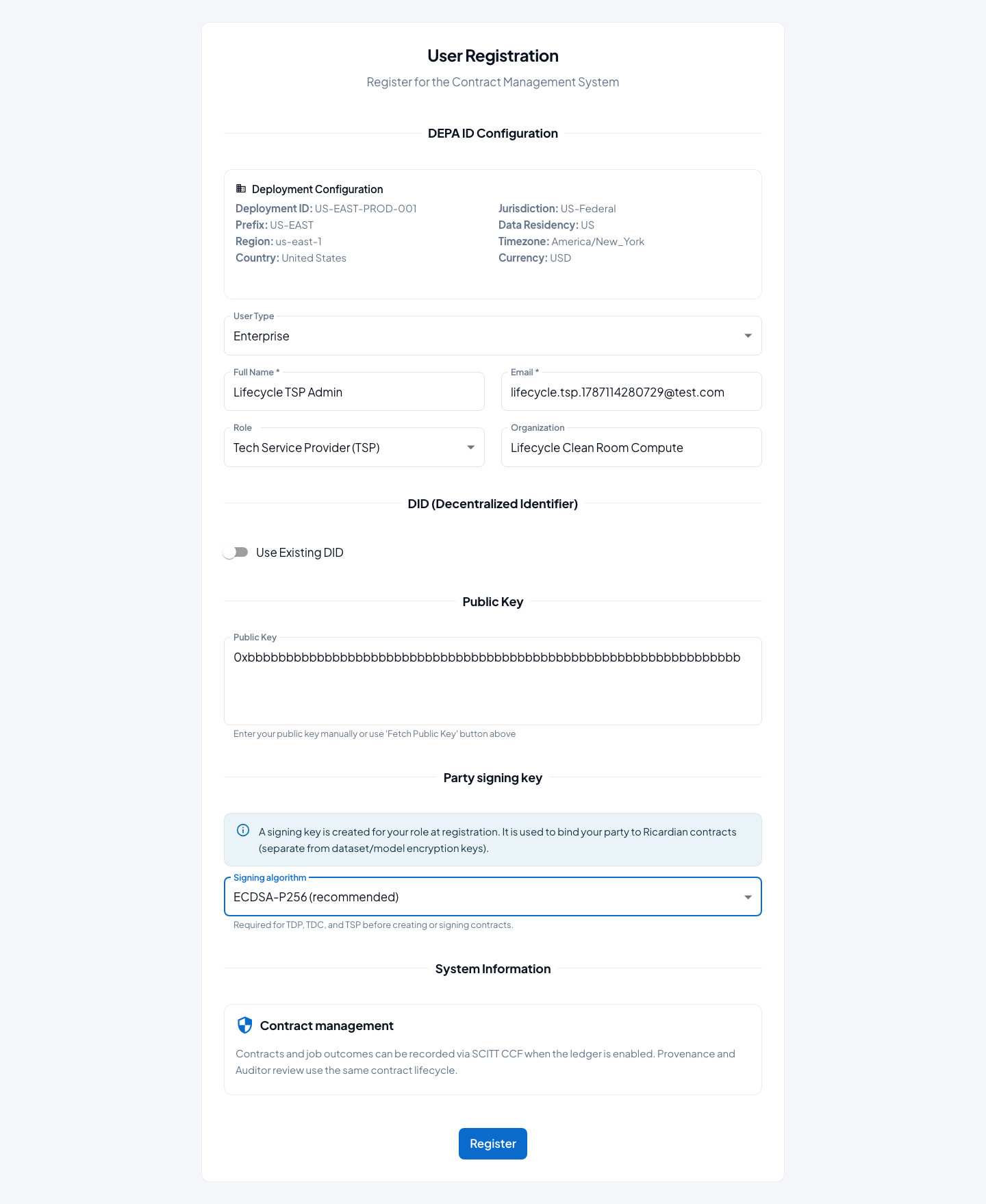

Enterprise registration for Tech Service Provider — Tech Service Provider (Local clean-room host) — enterprise registration

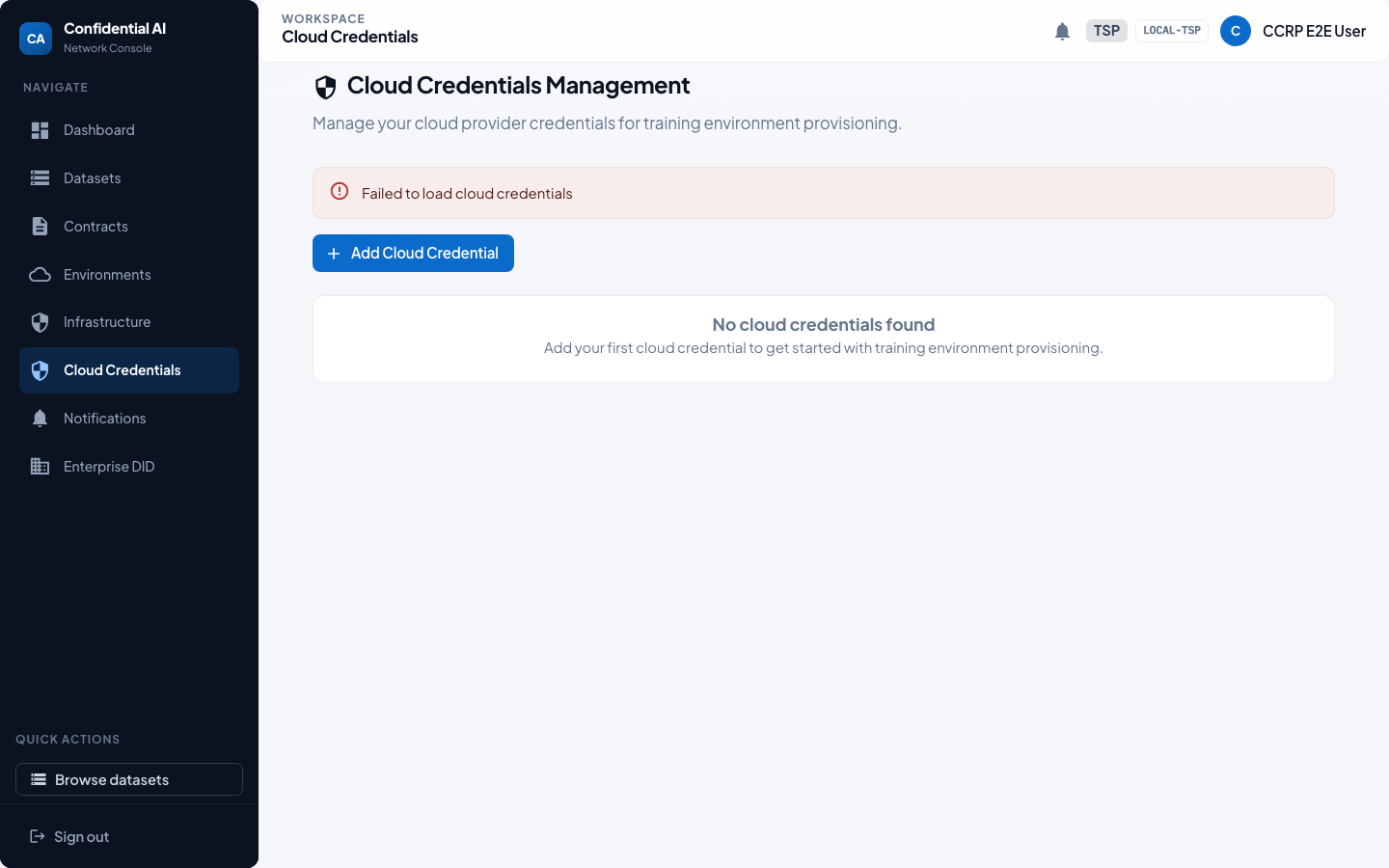

Tech Service Provider Local cloud readiness — Tech Service Provider — Local compute readiness for the demo environment

2. Dataset & model catalog (Local)

The Training Data Provider publishes a dataset to the catalog. The Training Data Consumer later selects that dataset and a catalog model (here: DistilBERT quality profile) when creating the contract.

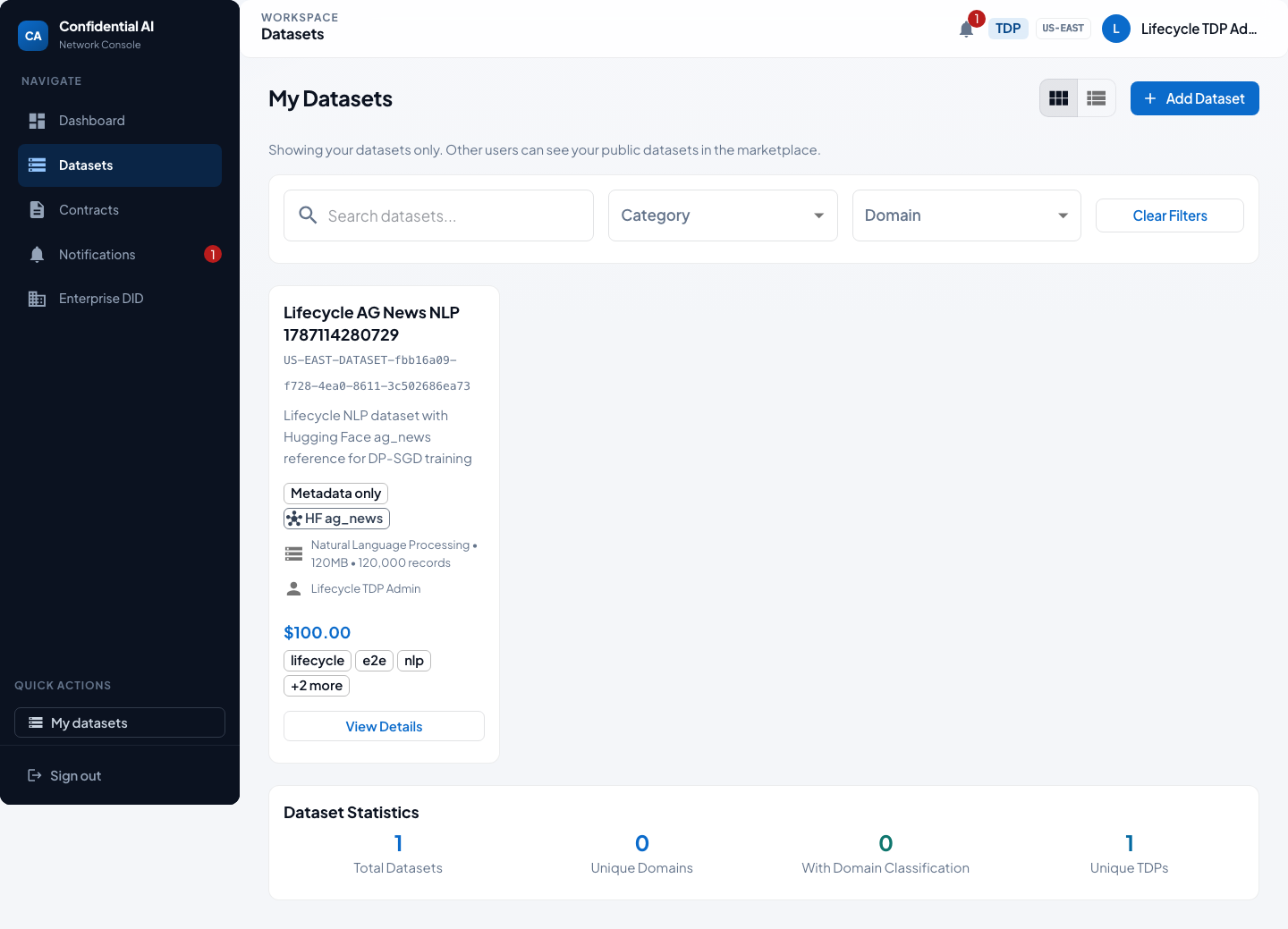

Training Data Provider published NLP dataset — Dataset published — NLP catalog entry (AG News reference)

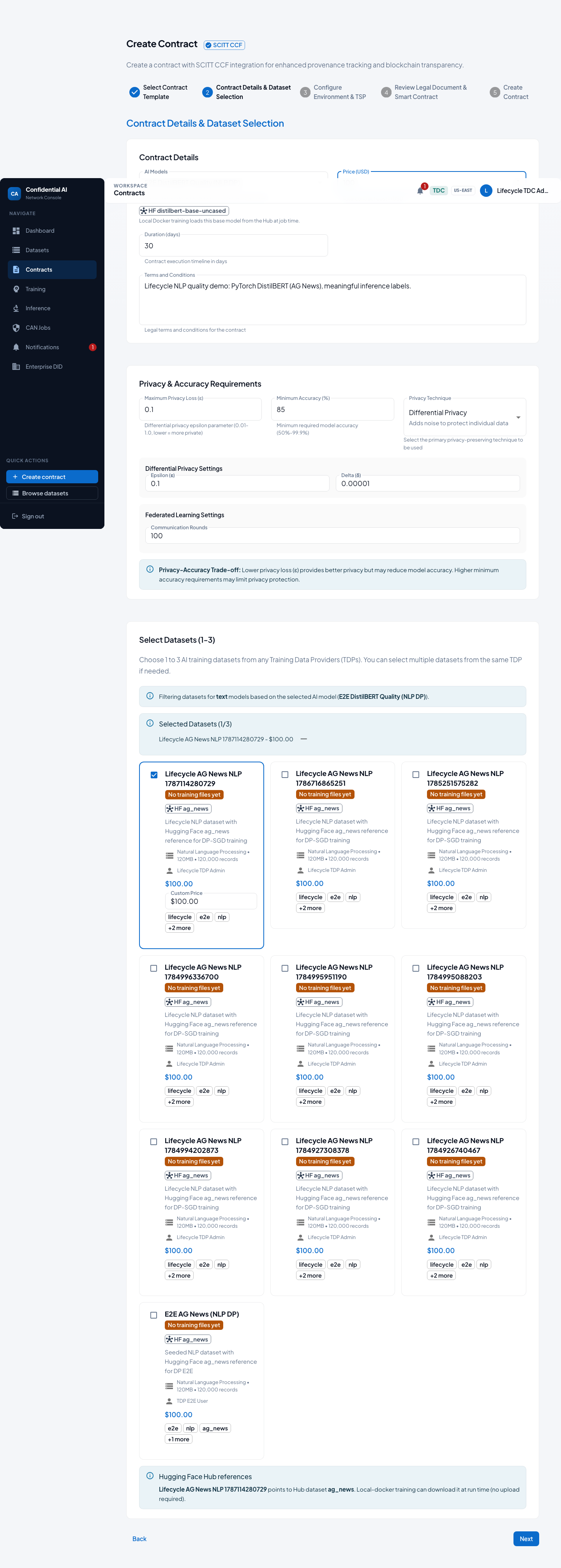

Contract wizard selecting dataset and model — Contract wizard — select dataset and model from the catalog

3. Contract creation & signing by all parties (Local)

The Training Data Consumer proposes terms and chooses the Local Tech Service Provider. The Training Data Provider and Tech Service Provider review notifications and sign with the party signing keys created at registration. Training cannot start until the contract is fully signed.

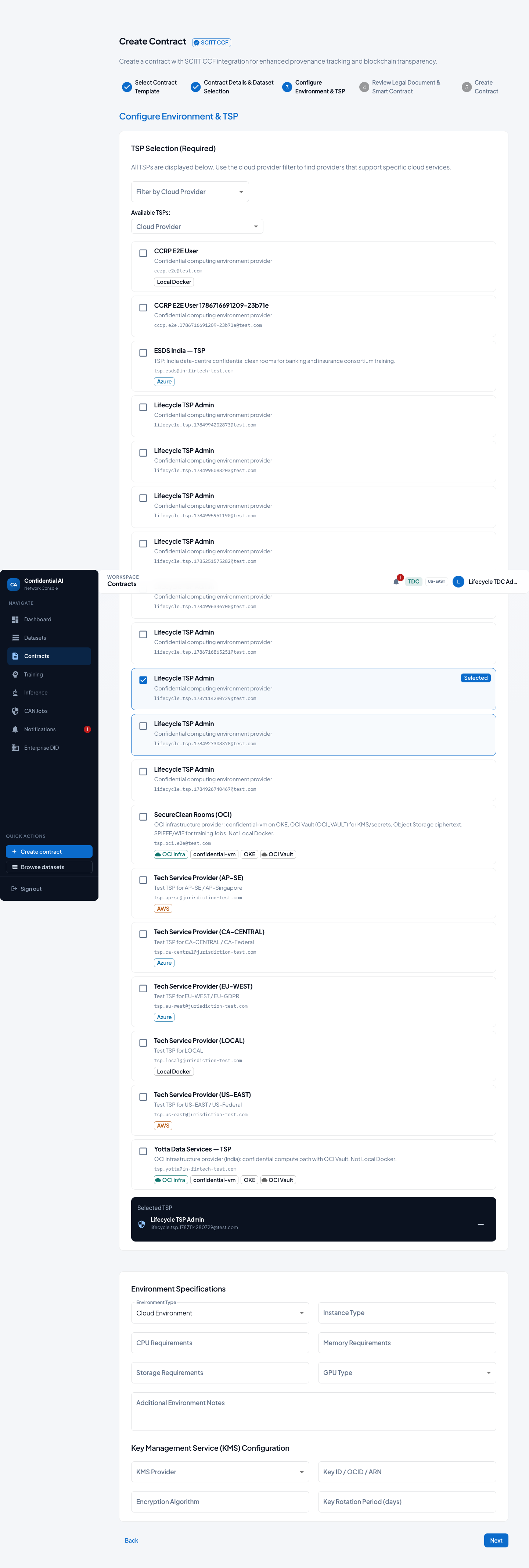

Selecting Tech Service Provider in contract wizard — Select Local Tech Service Provider and environment

Submitting the contract wizard — Submit contract — pending Training Data Provider approval

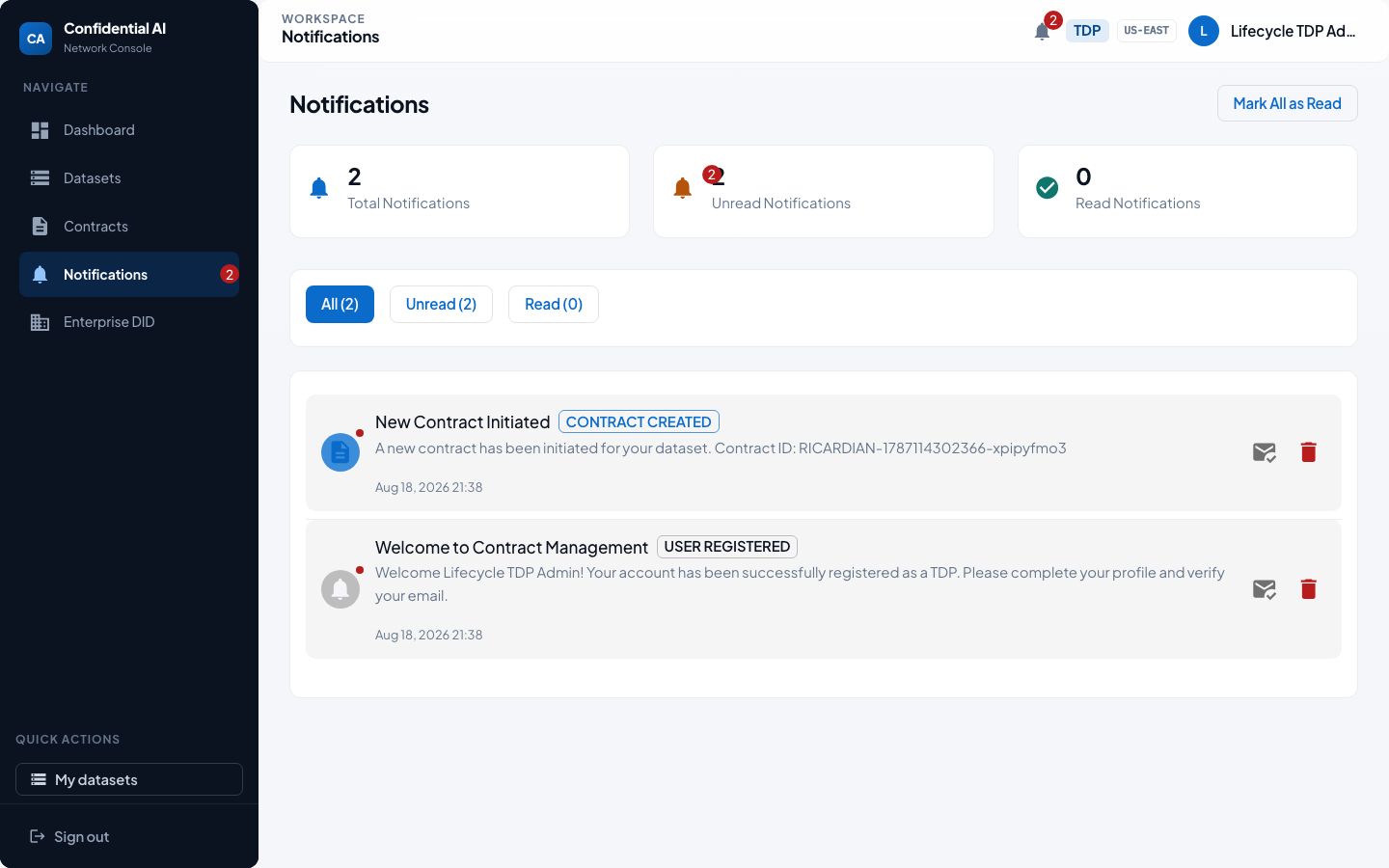

Training Data Provider notifications — Training Data Provider — signature notifications

Training Data Provider signing the contract — Training Data Provider signs

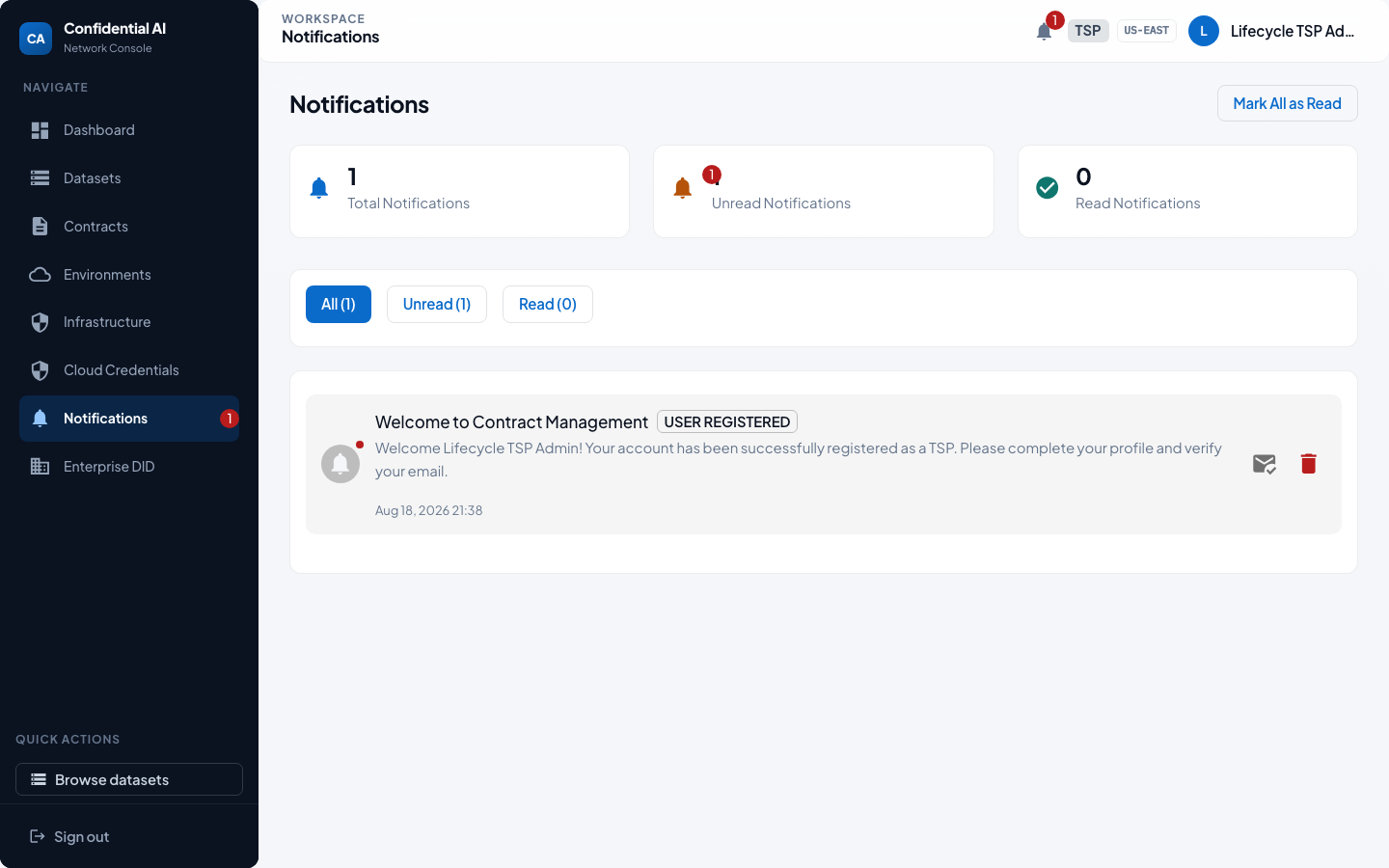

Tech Service Provider notifications — Tech Service Provider — signature notifications

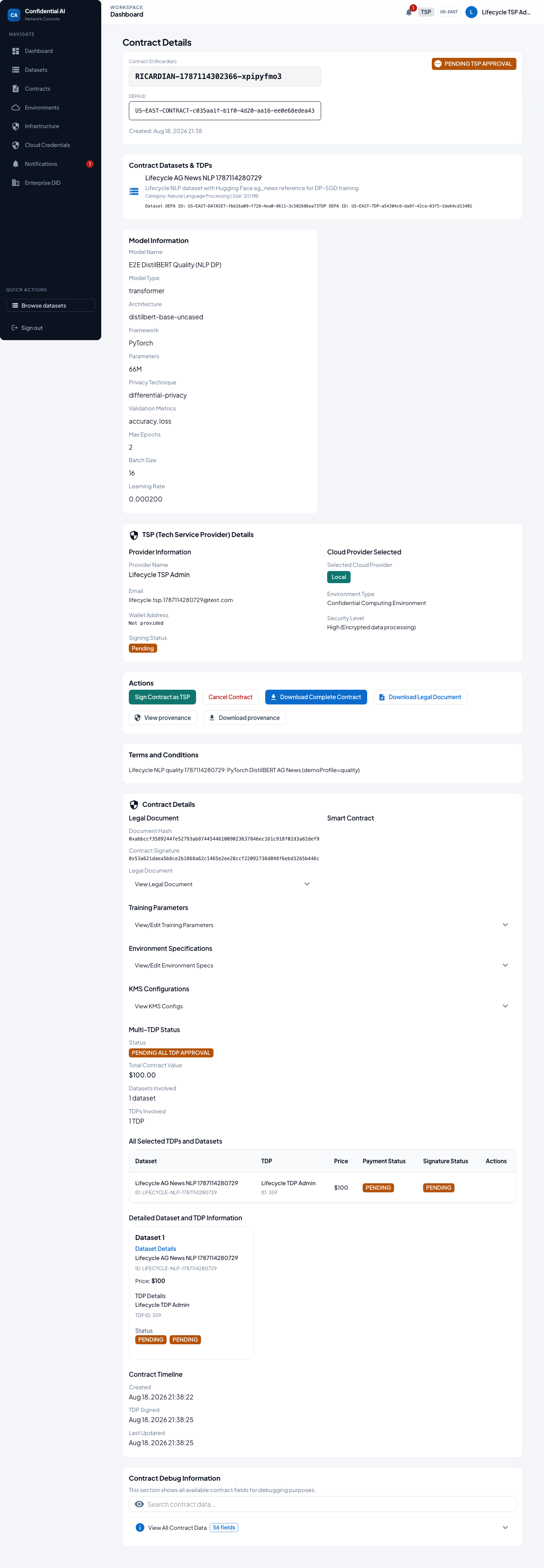

Tech Service Provider signing the contract — Tech Service Provider signs — contract becomes SIGNED

Signed contract view for Training Data Consumer — Training Data Consumer — signed contract

4. Training, run logs & provenance (Local)

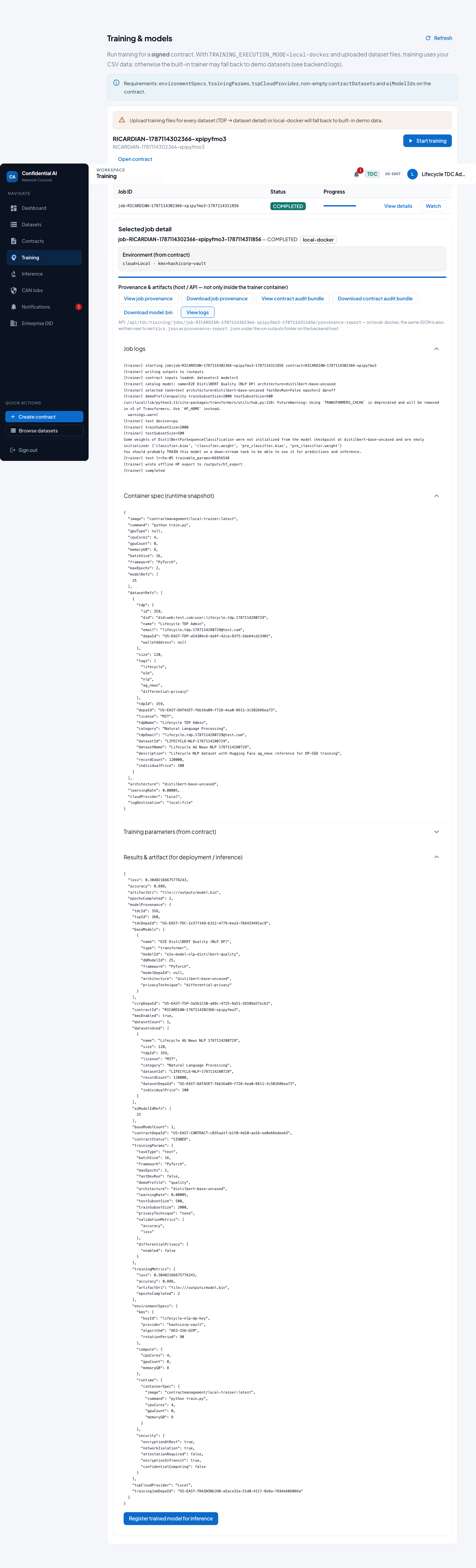

After signatures, the Training Data Consumer starts training, waits for completion, then opens the provenance report and trainer logs for auditability.

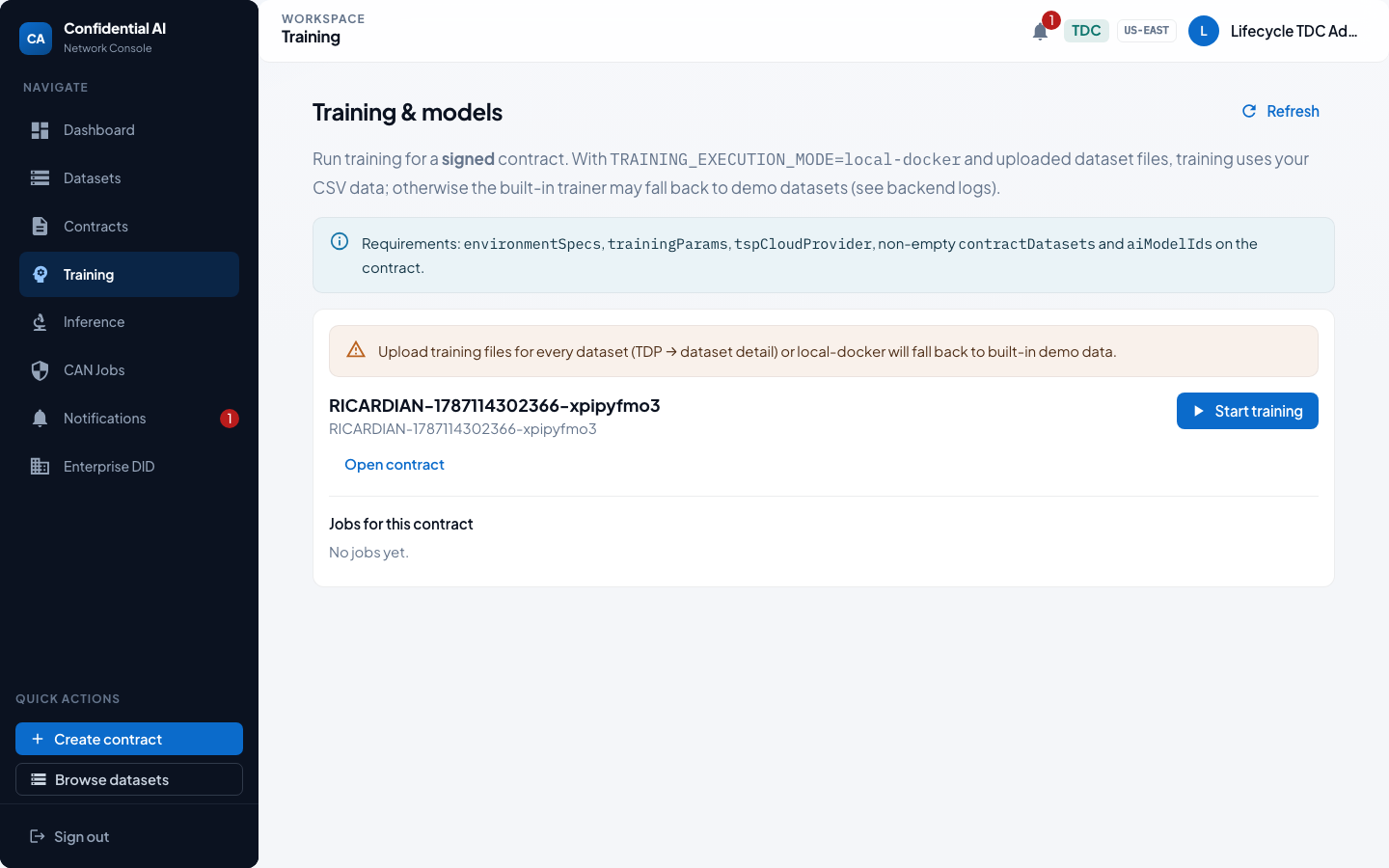

Start training on signed contract — Start training on the signed contract

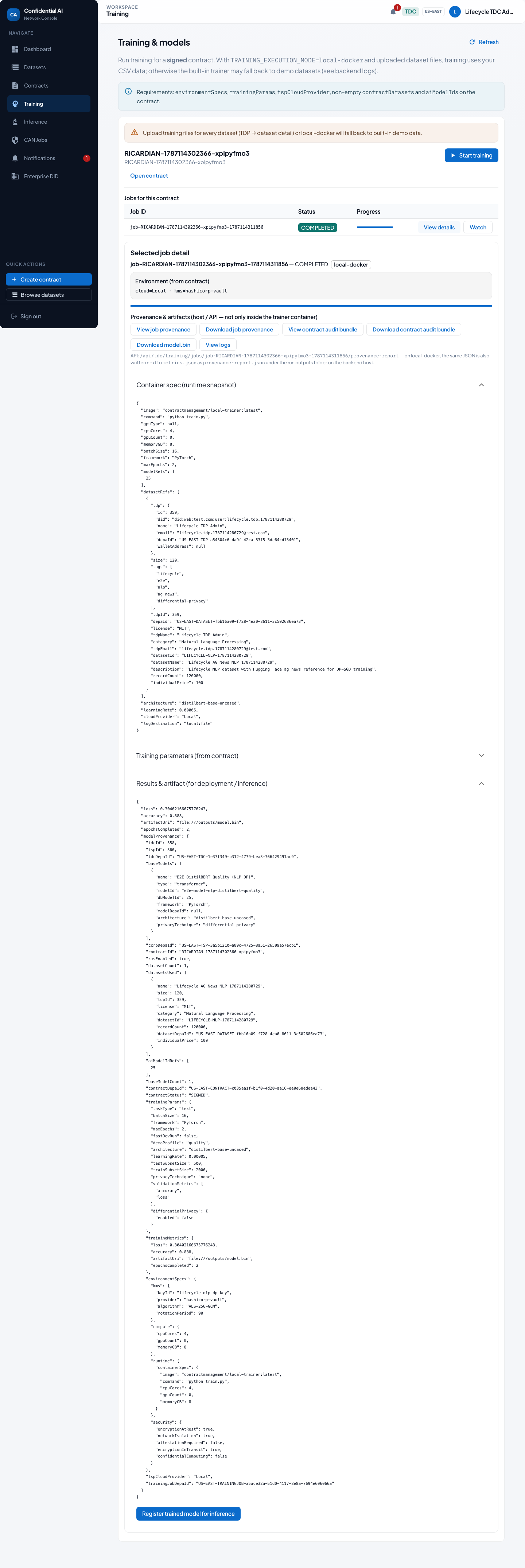

Training job completed — Training completed

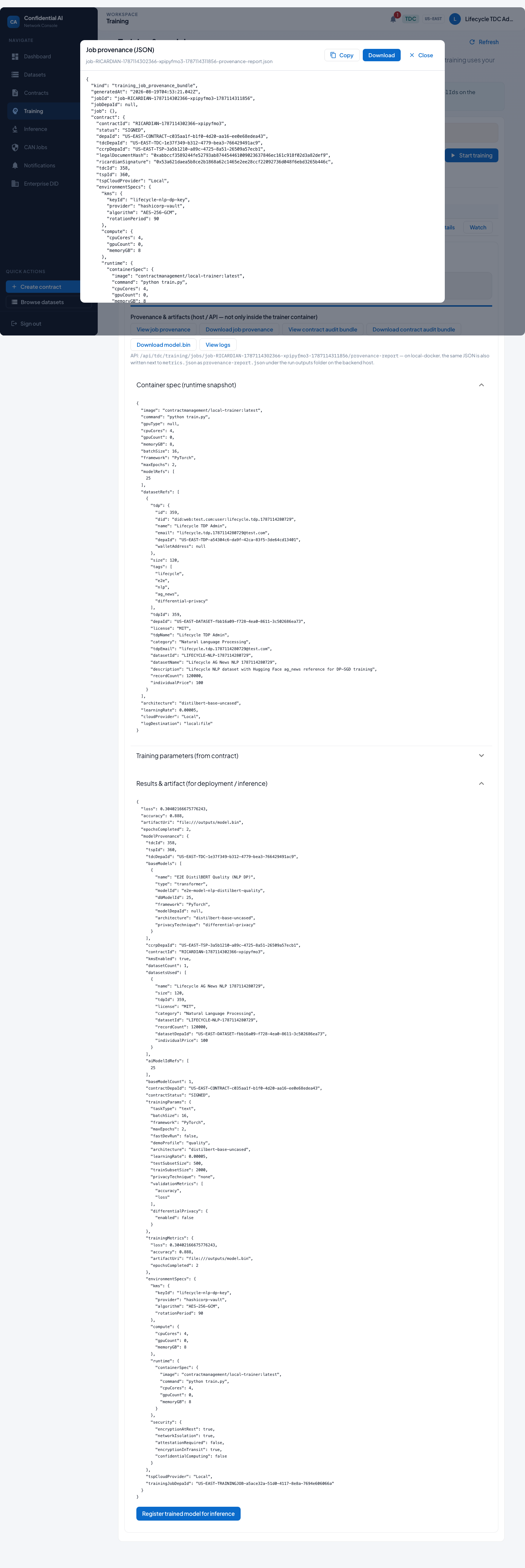

Full provenance report for the training job — Provenance report — datasets, model, privacy metrics, artifacts

5. Deploy & test the model (Local)

This tour trains a quality DistilBERT text classifier on AG News (World / Sports / Business / Sci/Tech) under a signed Ricardian contract, then registers the artifact, deploys it for local inference, and runs a headline prediction. The default example ("Wall Street rallies…") predicts Business. Register → deploy → open the Inference app → run prediction against infer.py in the local trainer image.

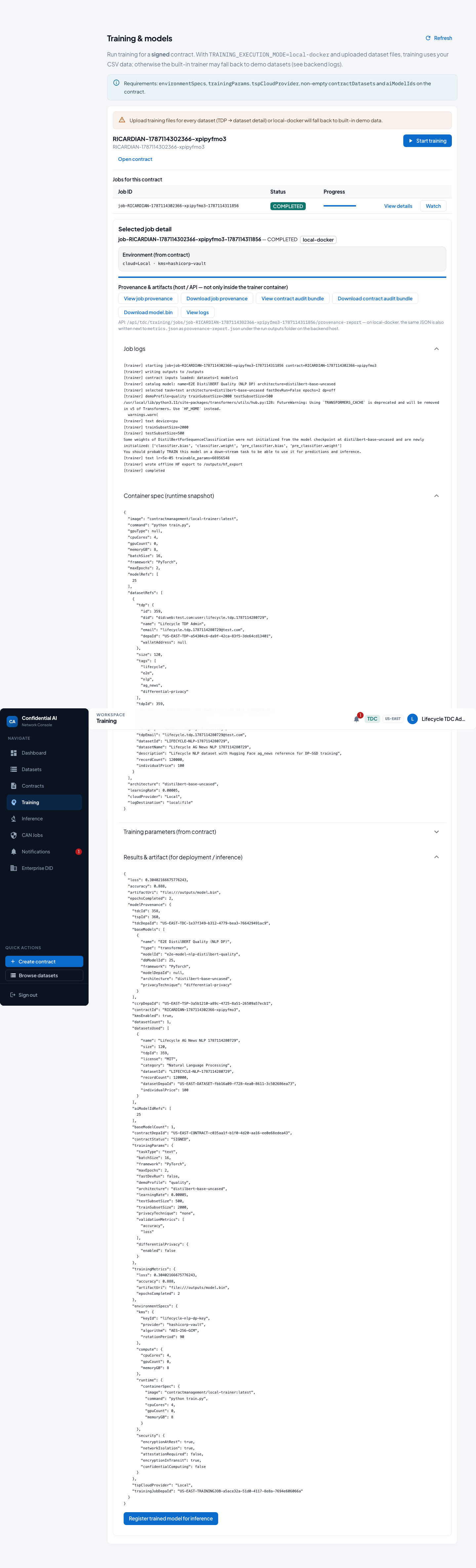

Register trained model for inference — Register trained DistilBERT artifact for inference

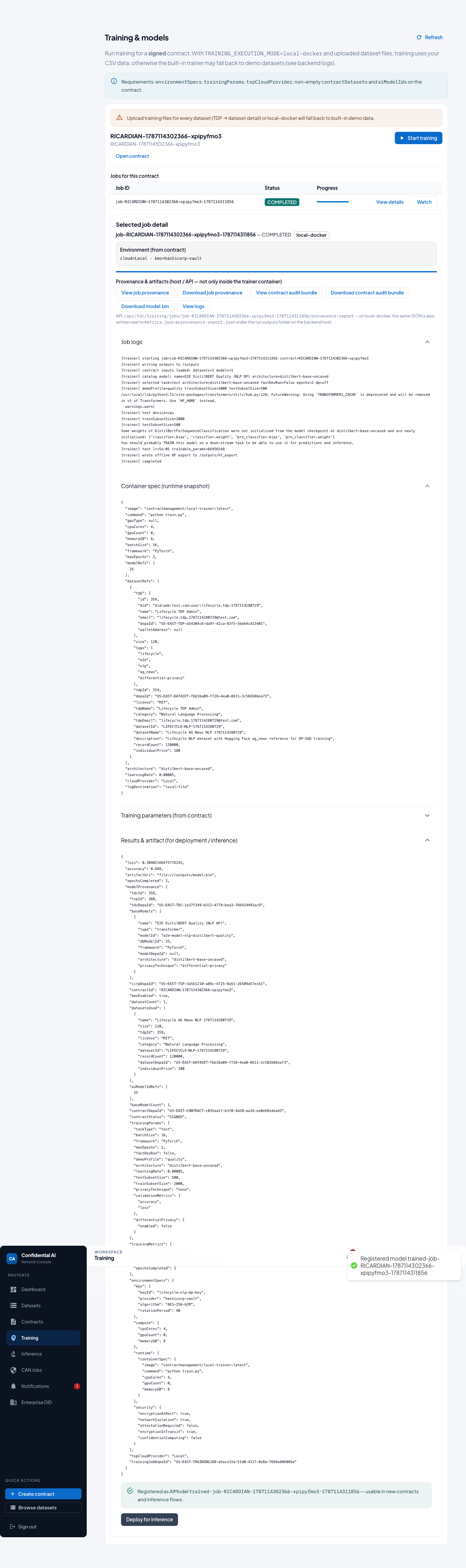

Deploy model for inference — Deploy for inference

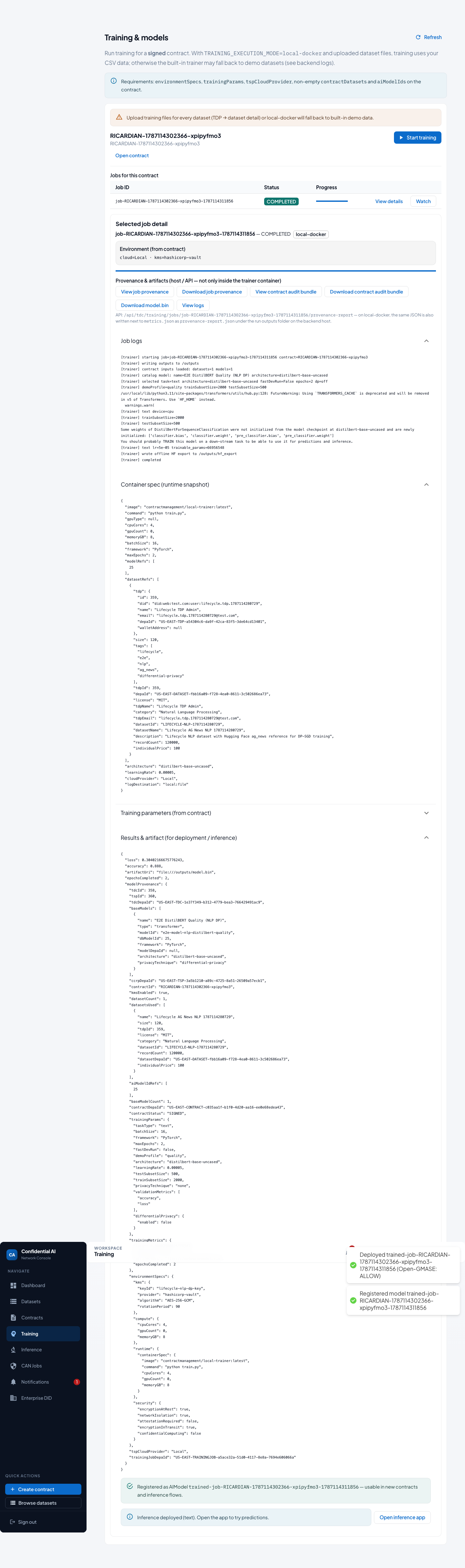

Inference deployed confirmation — Deployed — open Inference app

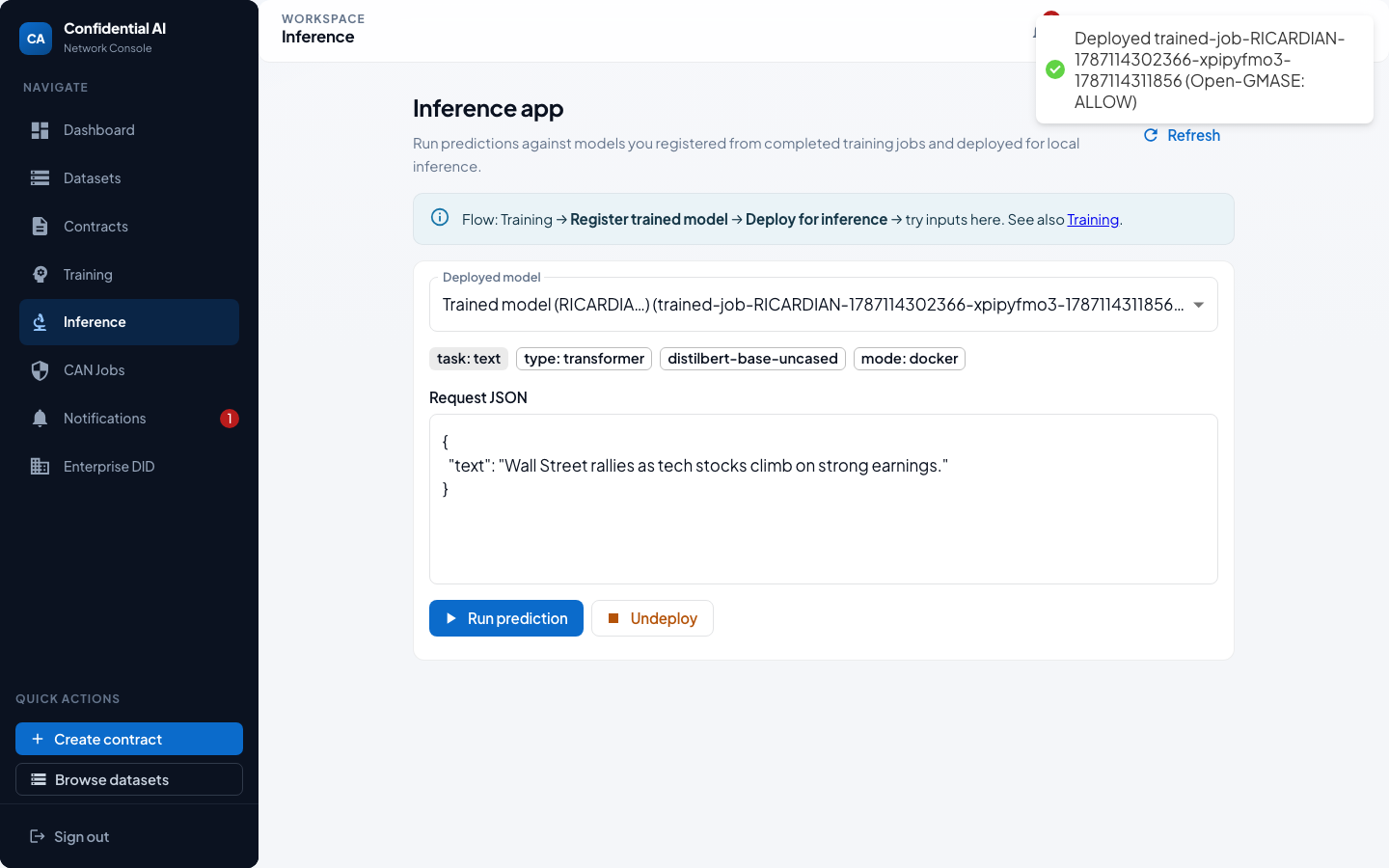

Inference app with example request — Inference app — AG News headline request ready

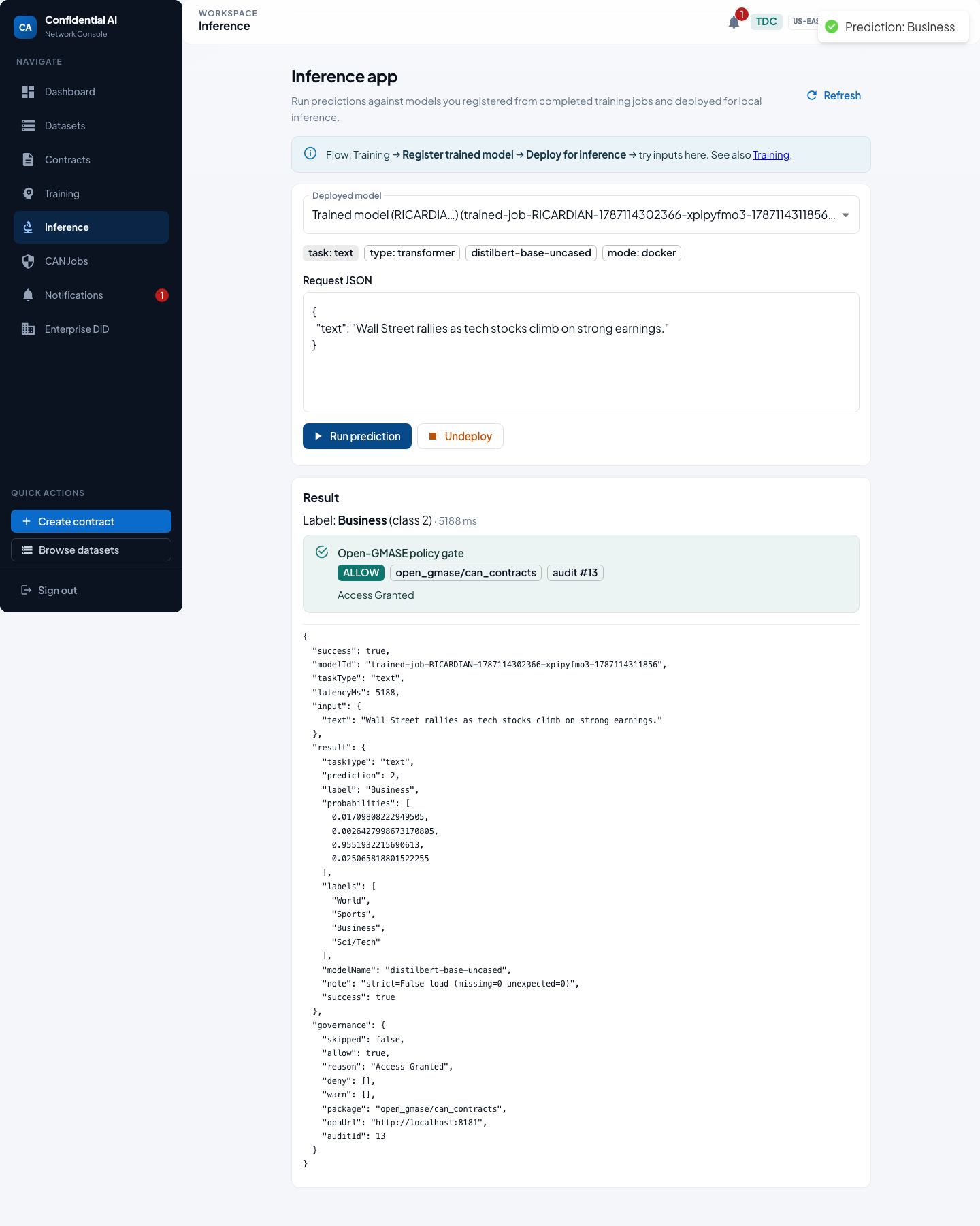

Inference prediction result with Open-GMASE gate — Prediction **Business** (quality DistilBERT) — includes Open-GMASE policy gate when OPA is running

6. Auditor — Merkle tree & contract review (Local)

After training and inference, a read-only Auditor opens the workspace, inspects the Merkle audit tree (root + leaf inclusion proofs) for the contract that produced the model, and reviews the Ricardian contract terms the training was based on. No sign / train / deploy rights.

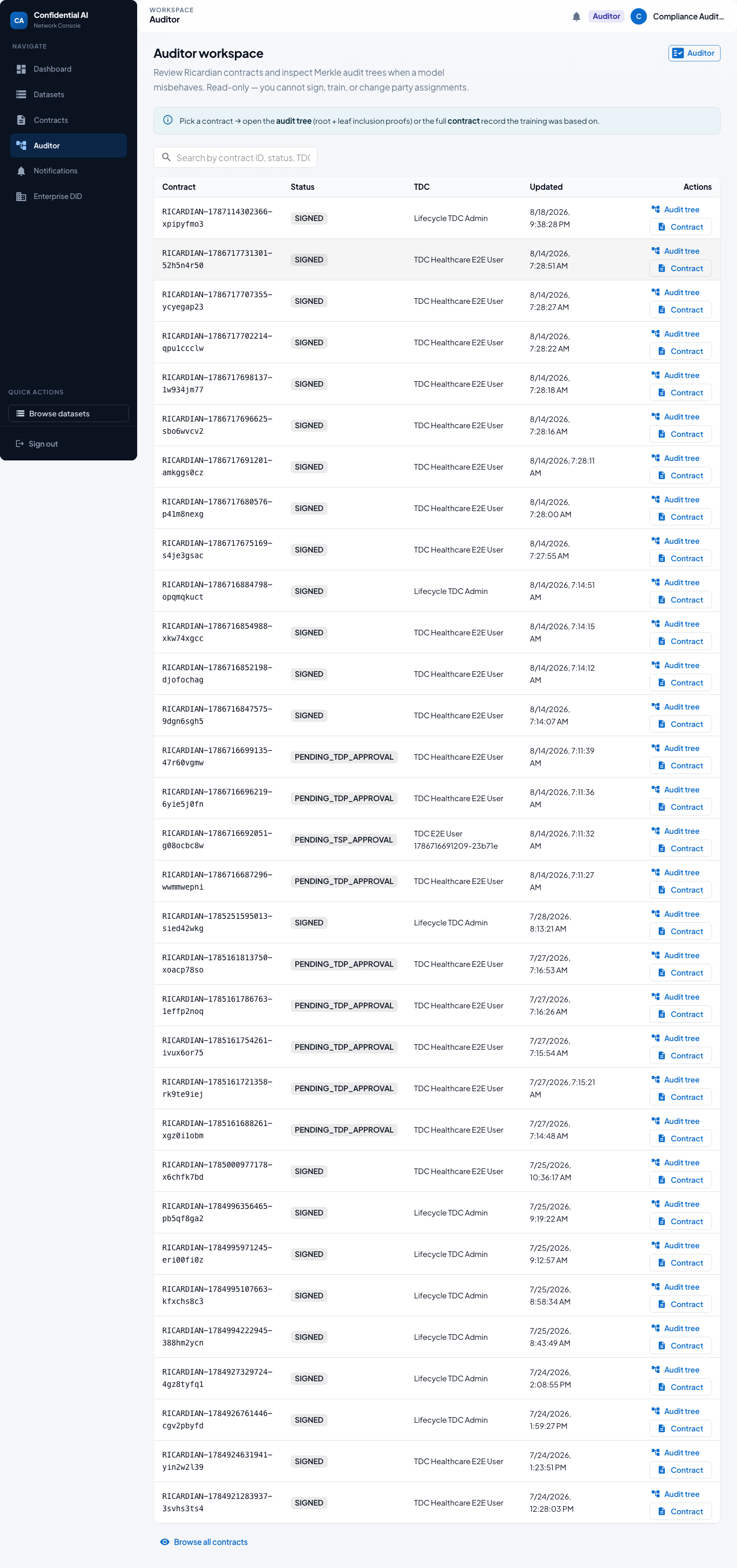

Auditor workspace listing contracts — Auditor workspace — pick a contract for audit tree or contract review

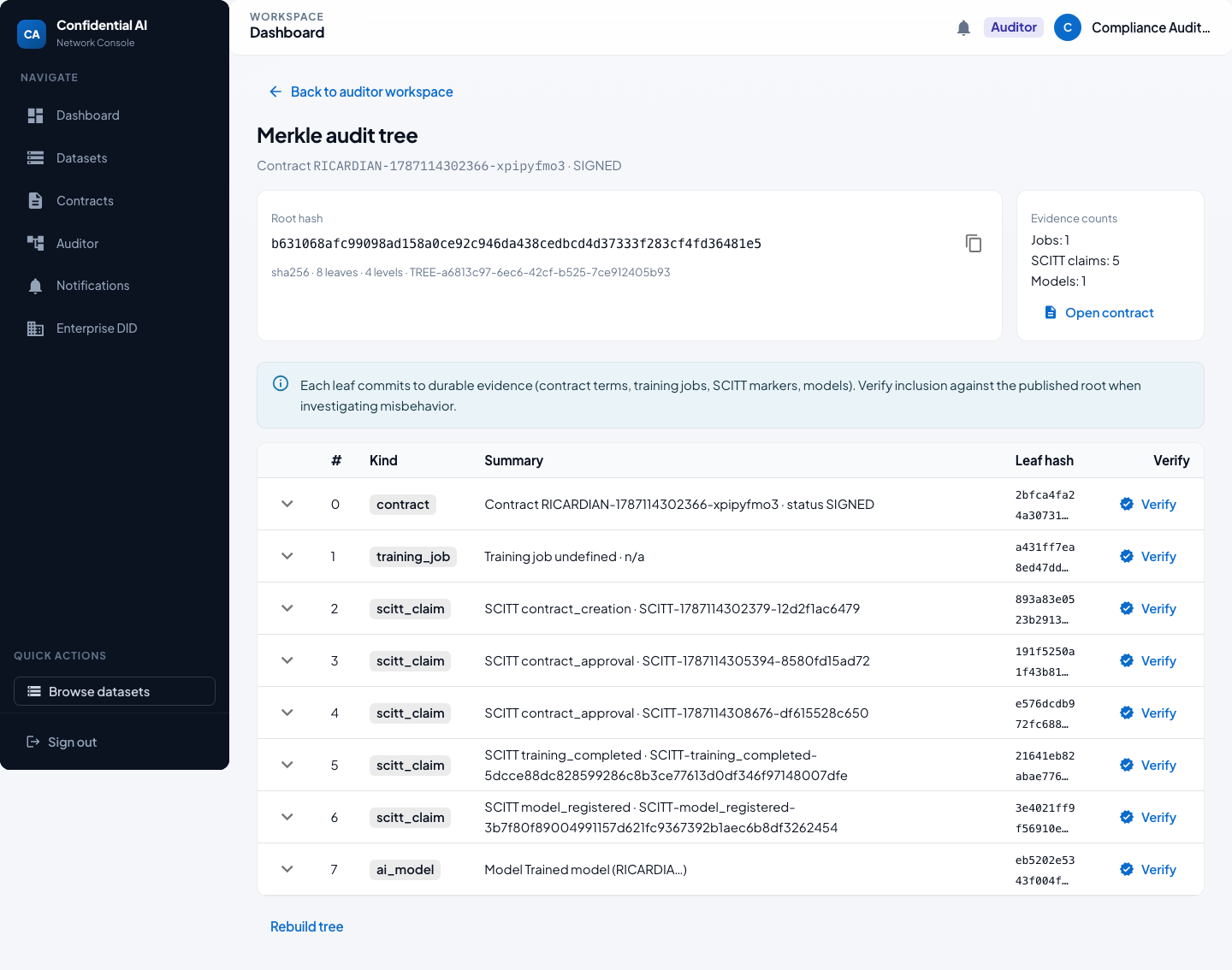

Merkle audit tree with root hash and leaves — Merkle audit tree — root hash, leaves (contract / jobs / SCITT / models), Verify

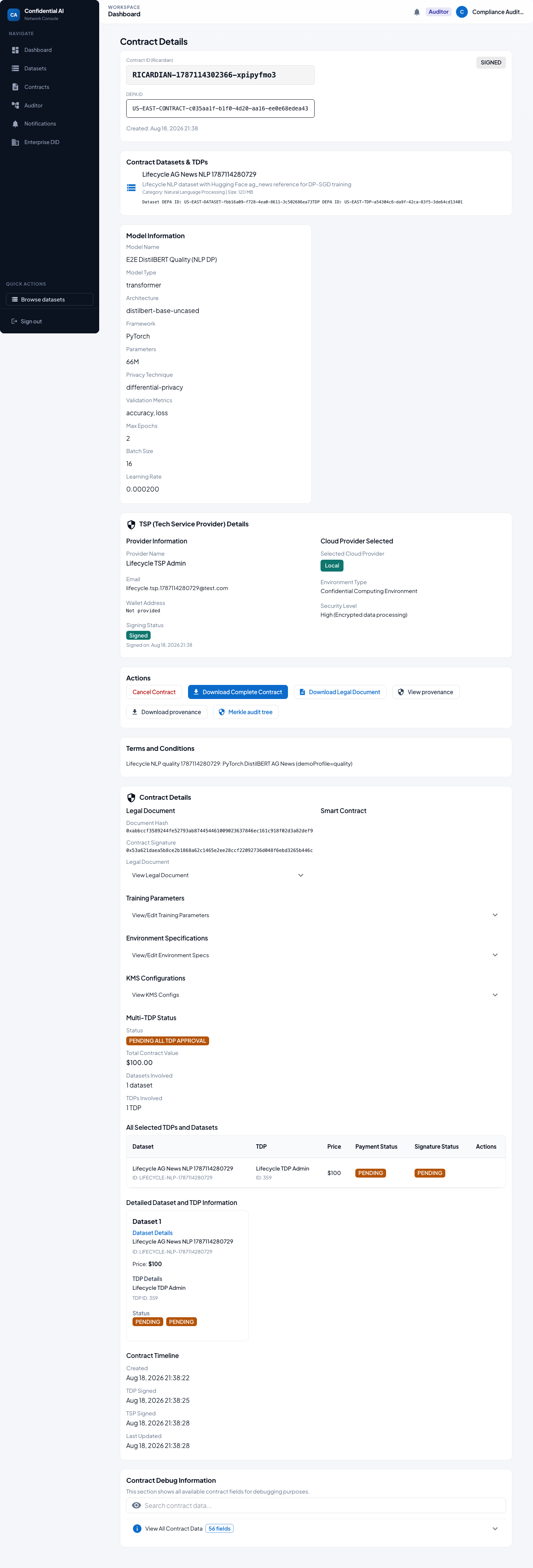

Auditor reviewing the Ricardian contract — Contract review — the agreement the problem model’s training was based on

7. Open-GMASE gate + CompliancePulse ingest (research demo)

The gate screenshots below use a faster tabular logistic regression model (Iris-style features → label setosa) so the seam is easy to reproduce. A vision path (TinyCNN + CIFAR-10 sample image) is available in the Inference app / API E2E. Before predict runs, CAN asks Open-GMASE OPA (open_gmase/can_contracts). The Inference app shows ALLOW/DENY with package and audit id. The same governance decision (not pixels or weights) is forwarded by default to CompliancePulse (POST /api/v1/audit/ingest on localhost:3001). Details: demo slice guide.

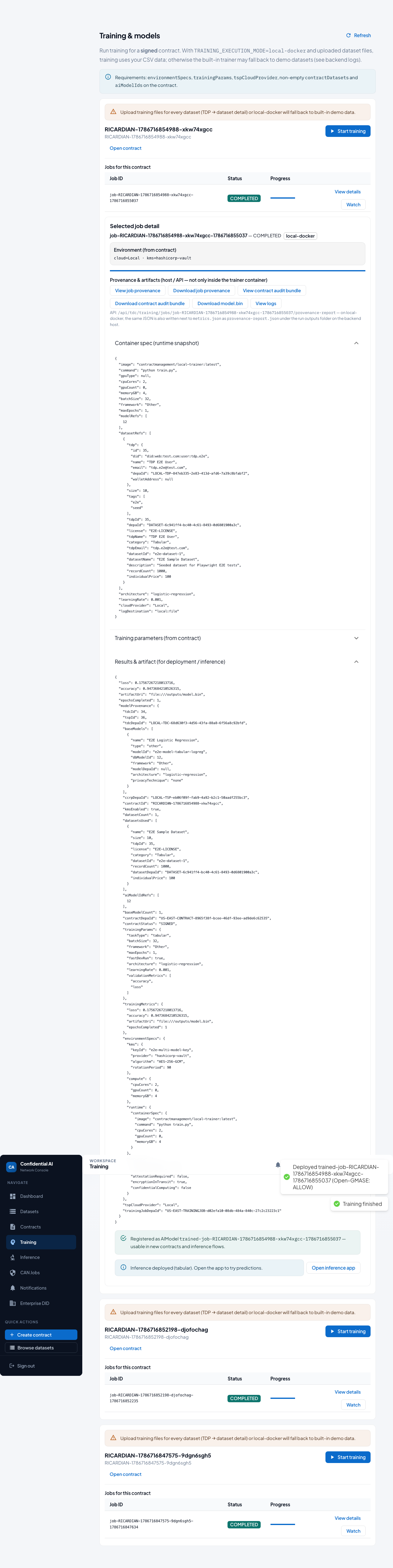

Deploy for inference under Open-GMASE gate — Deploy for inference — gated by OPA; decision forwarded to CompliancePulse (not the model artifact)

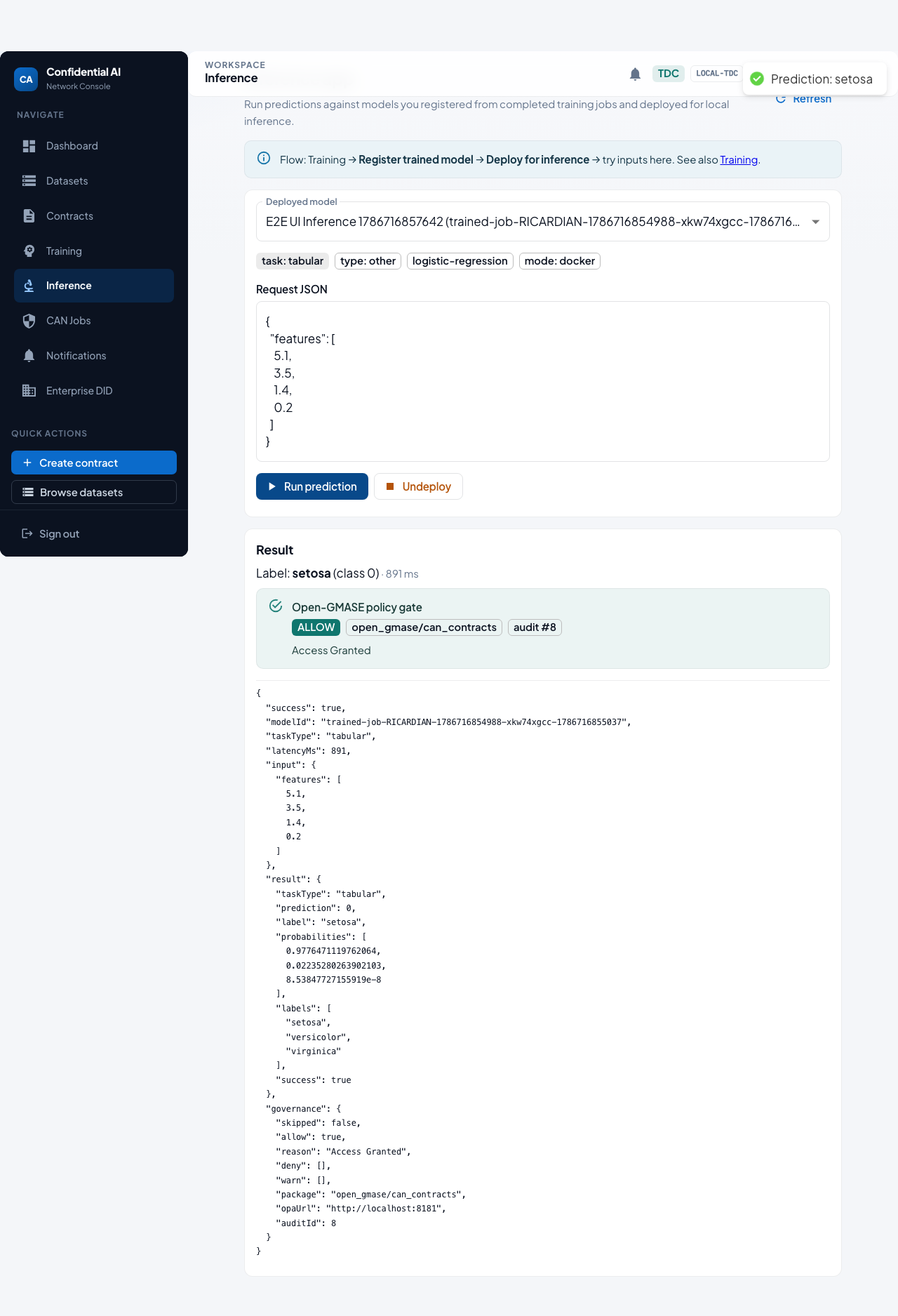

Open-GMASE ALLOW on prediction — Prediction **setosa** with Open-GMASE ALLOW — same decision event in CP audit trail

How these screenshots are produced

Local path (full stack — backend, frontend, Keycloak, trainer):

cd frontend
BACKEND_URL=http://127.0.0.1:5001 npm run test:e2e:lifecycle-guide

Auditor screenshots only (reuses an existing contract):

cd frontend
BACKEND_URL=http://127.0.0.1:5001 npm run test:e2e:auditor-guide

Open-GMASE gate screenshots:

cd frontend
E2E_WAIT_FOR_LOCAL_TRAINING=true BACKEND_URL=http://127.0.0.1:5001 npm run test:e2e:inference

Images live in docs/guides/lifecycle-user-guide/screenshots/ and docs/guides/gmase-integration/screenshots/, and are copied into this site at Pages build time.
